Precision Medical Injection Mold Manufacturer

Delivering precision tooling solutions for medical components with tight tolerances, consistent quality, and reliable production performance.

Our Medical Molding Capabilities

Medical Injection Mold Tooling Capabilities

Mold Precision:

Mold tolerances up to ±0.01 mm

Part Precision:

Typical part tolerances up to ±0.03 mm

High-Cavity Molds:

Up to 96 cavities for high-volume production

Medical Mold Types:

Single-color, 2K, insert, overmolding and unscrewing molds

Precision Mold Structures:

Fine inserts, miniature sliders, lifters, collapsible cores and unscrewing mechanisms

Engineering Support:

DFM, mold design, Moldflow analysis, tolerance analysis and pre-deformation analysis

Multi-Cavity Balance:

Optimized runner, gating and cooling systems for consistent cavity-to-cavity quality

Flash Control:

Precise parting-line and shut-off design for reliable flash prevention

Mold Validation:

T1/T2/T3 trials, dimensional inspection, functional testing and detailed trial reports

Quality Inspection:

CMM, optical measurement, microscope inspection and cavity-to-cavity dimensional analysis

Engineering Challenges We Help Solve

Tight Dimensional Tolerance

Precision machining and controlled molding processes ensure consistent critical dimensions and reliable product performance.

Multi-Cavity Balance

Optimized runner and gating systems deliver uniform filling, pressure, and part quality across every cavity.

Flash & Parting Line Control

High-precision mold alignment and carefully fitted parting surfaces minimize flash and visible parting lines.

Sealing & Functional Interfaces

Critical sealing and connection areas are precisely manufactured to prevent leakage and ensure secure assembly.

Clean Mold Construction

Corrosion-resistant steel, clean mold design, and contamination-controlled manufacturing support demanding medical applications.

High-Volume Production Stability

Robust mold construction, balanced cooling, and wear-resistant components maintain stable production over long molding cycles.

Case Study

We bridge the gap between innovative design and practical manufacturing.

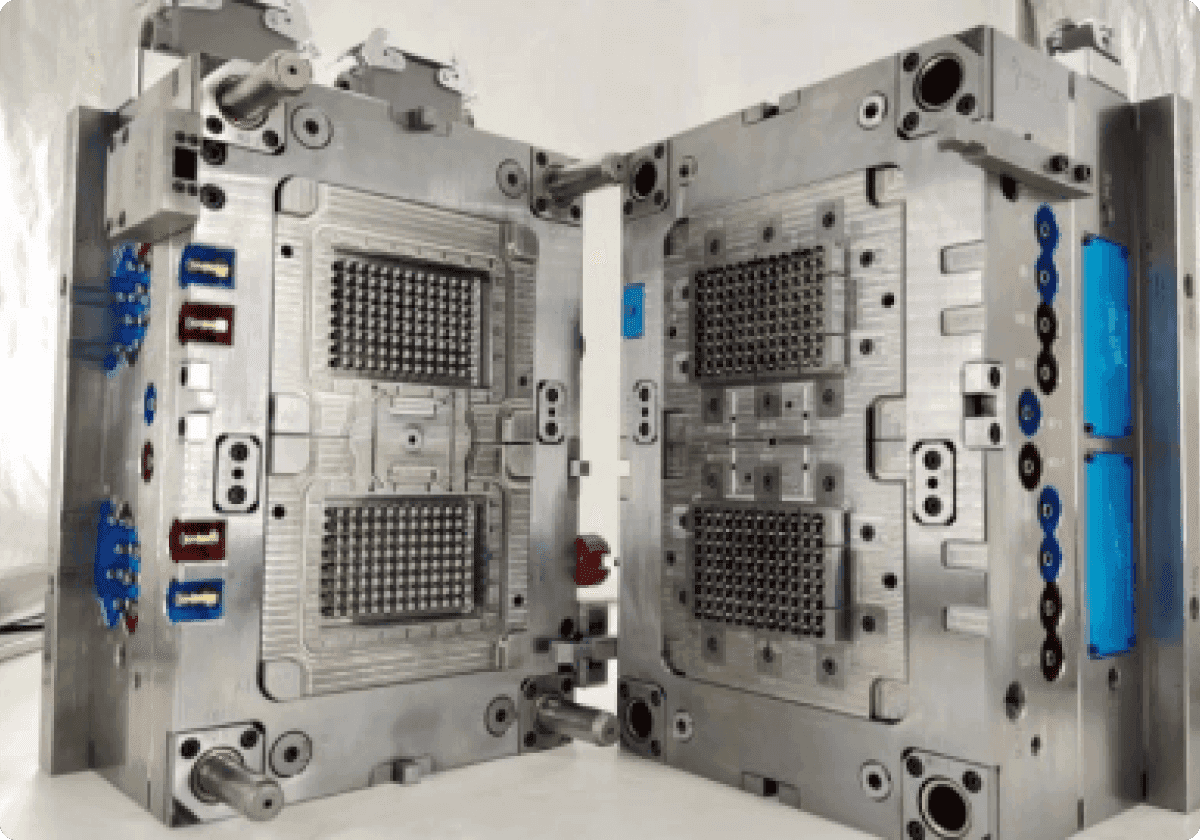

Pipette Tip Injection Mold

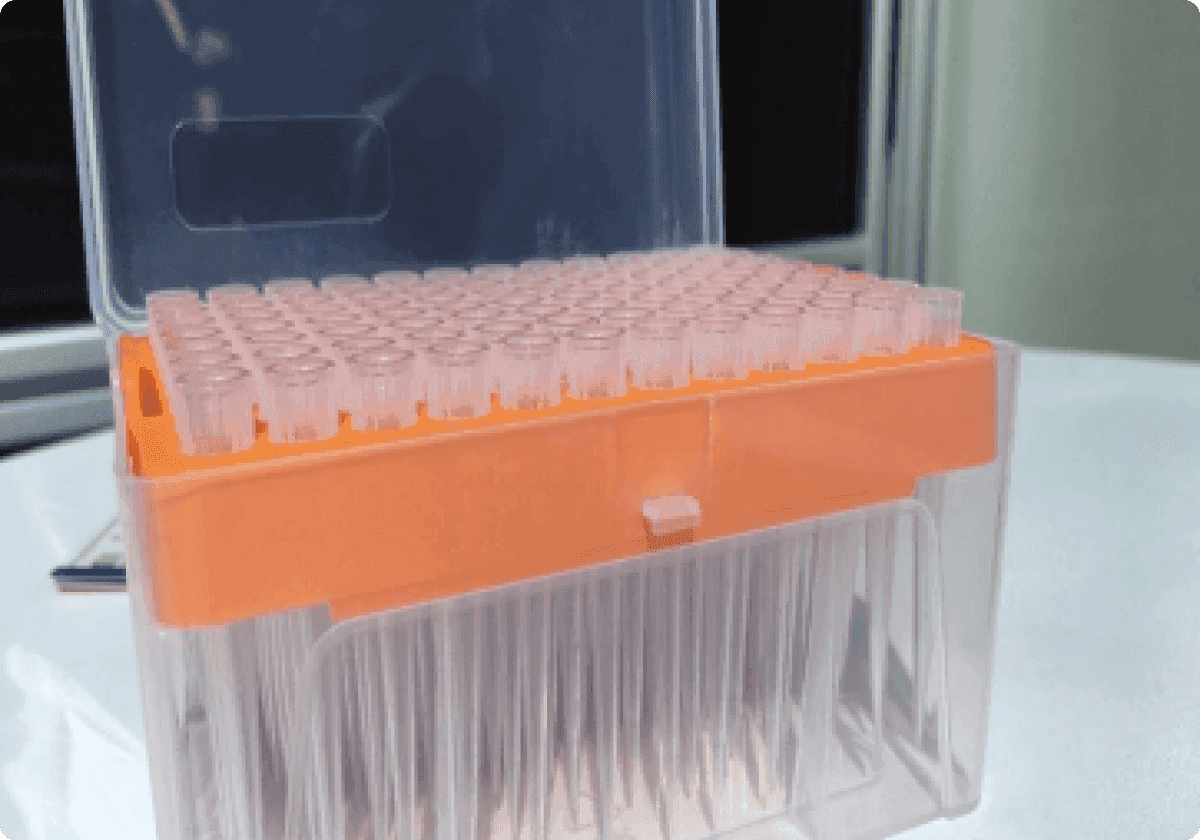

Part Name: Pipette Tips Part Dimension: Approx. Ø8 × 70 mm Part Material: Medical-grade Polypropylene (PP) Cavities: 96 Cavities Mold Steel: ASSAB Stavax ESR HRC48~52 Mold Size: 850 × 700 × 600 mm Mold Weight: 2,200 kg Exported to USA

Pipette Tip Mold Trial

Challenges The long, thin-walled tapered structure is prone to short shots, deformation, and uneven shrinkage during molding. With 96 cavities, maintaining consistent filling, dimensions, and part weight across all cavities is highly challenging. Solutions A balanced hot runner and optimized gating system ensure uniform filling and stable pressure in every cavity. High-precision S136 inserts and well-balanced cooling channels minimize dimensional variation and deformation. Precision machining, controlled clean production, and strict cavity-by-cavity inspection ensure reliable sealing and consistent product quality.
